Azure AI Foundry Agents

Call Azure AI Foundry Agents in the OpenAI Request/Response format.

PropertyDetails
DescriptionAzure AI Foundry Agents provides hosted agent runtimes that can execute agentic workflows with foundation models, tools, and code interpreters.
Provider Route on LiteLLMazure_ai/agents/{AGENT_ID}
Provider DocAzure AI Foundry Agents ↗

Authentication​

Azure AI Foundry Agents require Azure AD authentication (not API keys). You can authenticate using:

Set these environment variables:

export AZURE_TENANT_ID="your-tenant-id"
export AZURE_CLIENT_ID="your-client-id"
export AZURE_CLIENT_SECRET="your-client-secret"

LiteLLM will automatically obtain an Azure AD token using these credentials.

Option 2: Azure AD Token (Manual)​

Pass a token directly via api_key:

# Get token via Azure CLI
az account get-access-token --resource "https://ai.azure.com" --query accessToken -o tsv

Required Azure Role​

Your Service Principal or user must have the Azure AI Developer or Azure AI User role on your Azure AI Foundry project.

To assign via Azure CLI:

az role assignment create \
  --assignee-object-id "<service-principal-object-id>" \
  --assignee-principal-type "ServicePrincipal" \
  --role "Azure AI Developer" \
  --scope "/subscriptions/<sub>/resourceGroups/<rg>/providers/Microsoft.CognitiveServices/accounts/<resource>"

Or add via Azure AI Foundry Portal → Your Project → Project users → + New user.

Quick Start​

Model Format to LiteLLM​

To call an Azure AI Foundry Agent through LiteLLM, use the following model format.

Here the model=azure_ai/agents/ tells LiteLLM to call the Azure AI Foundry Agent Service API.

Model Format to LiteLLM
azure_ai/agents/{AGENT_ID}

Example:

  • azure_ai/agents/asst_abc123

You can find the Agent ID in your Azure AI Foundry portal under Agents.

LiteLLM Python SDK​

Basic Agent Completion
import litellm

# Make a completion request to your Azure AI Foundry Agent
# Uses AZURE_TENANT_ID, AZURE_CLIENT_ID, AZURE_CLIENT_SECRET env vars for auth
response = litellm.completion(
    model="azure_ai/agents/asst_abc123",
    messages=[
        {
            "role": "user",
            "content": "Explain machine learning in simple terms"
        }
    ],
    api_base="https://your-resource.services.ai.azure.com/api/projects/your-project",
)

print(response.choices[0].message.content)
print(f"Usage: {response.usage}")
Streaming Agent Responses
import litellm

# Stream responses from your Azure AI Foundry Agent
response = await litellm.acompletion(
    model="azure_ai/agents/asst_abc123",
    messages=[
        {
            "role": "user",
            "content": "What are the key principles of software architecture?"
        }
    ],
    api_base="https://your-resource.services.ai.azure.com/api/projects/your-project",
    stream=True,
)

async for chunk in response:
    if chunk.choices[0].delta.content:
        print(chunk.choices[0].delta.content, end="")

LiteLLM Proxy​

1. Configure your model in config.yaml​

LiteLLM Proxy Configuration
model_list:
  - model_name: azure-agent-1
    litellm_params:
      model: azure_ai/agents/asst_abc123
      api_base: https://your-resource.services.ai.azure.com/api/projects/your-project
      # Service Principal auth (recommended)
      tenant_id: os.environ/AZURE_TENANT_ID
      client_id: os.environ/AZURE_CLIENT_ID
      client_secret: os.environ/AZURE_CLIENT_SECRET

  - model_name: azure-agent-math-tutor
    litellm_params:
      model: azure_ai/agents/asst_def456
      api_base: https://your-resource.services.ai.azure.com/api/projects/your-project
      # Or pass Azure AD token directly
      api_key: os.environ/AZURE_AD_TOKEN

2. Start the LiteLLM Proxy​

Start LiteLLM Proxy
litellm --config config.yaml

3. Make requests to your Azure AI Foundry Agents​

Basic Agent Request
curl http://localhost:4000/v1/chat/completions \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $LITELLM_API_KEY" \
  -d '{
    "model": "azure-agent-1",
    "messages": [
      {
        "role": "user",
        "content": "Summarize the main benefits of cloud computing"
      }
    ]
  }'
Streaming Agent Request
curl http://localhost:4000/v1/chat/completions \
  -H "Content-Type: application/json" \
  -H "Authorization: Bearer $LITELLM_API_KEY" \
  -d '{
    "model": "azure-agent-math-tutor",
    "messages": [
      {
        "role": "user",
        "content": "What is 25 * 4?"
      }
    ],
    "stream": true
  }'

Environment Variables​

VariableDescription
AZURE_TENANT_IDAzure AD tenant ID for Service Principal auth
AZURE_CLIENT_IDApplication (client) ID of your Service Principal
AZURE_CLIENT_SECRETClient secret for your Service Principal
export AZURE_TENANT_ID="your-tenant-id"
export AZURE_CLIENT_ID="your-client-id"
export AZURE_CLIENT_SECRET="your-client-secret"

Conversation Continuity (Thread Management)​

Azure AI Foundry Agents use threads to maintain conversation context. LiteLLM automatically manages threads for you, but you can also pass an existing thread ID to continue a conversation.

Continuing a Conversation
import litellm

# First message creates a new thread
response1 = await litellm.acompletion(
    model="azure_ai/agents/asst_abc123",
    messages=[{"role": "user", "content": "My name is Alice"}],
    api_base="https://your-resource.services.ai.azure.com/api/projects/your-project",
)

# Get the thread_id from the response
thread_id = response1._hidden_params.get("thread_id")

# Continue the conversation using the same thread
response2 = await litellm.acompletion(
    model="azure_ai/agents/asst_abc123",
    messages=[{"role": "user", "content": "What's my name?"}],
    api_base="https://your-resource.services.ai.azure.com/api/projects/your-project",
    thread_id=thread_id,  # Pass the thread_id to continue conversation
)

print(response2.choices[0].message.content)  # Should mention "Alice"

Provider-specific Parameters​

Azure AI Foundry Agents support additional parameters that can be passed to customize the agent invocation.

Using Agent-specific parameters
from litellm import completion

response = litellm.completion(
    model="azure_ai/agents/asst_abc123",
    messages=[
        {
            "role": "user",
            "content": "Analyze this data and provide insights",
        }
    ],
    api_base="https://your-resource.services.ai.azure.com/api/projects/your-project",
    thread_id="thread_abc123",  # Optional: Continue existing conversation
    instructions="Be concise and focus on key insights",  # Optional: Override agent instructions
)

Available Parameters​

ParameterTypeDescription
thread_idstringOptional thread ID to continue an existing conversation
instructionsstringOptional instructions to override the agent's default instructions for this run

LiteLLM A2A Gateway​

You can also connect to Azure AI Foundry Agents through LiteLLM's A2A (Agent-to-Agent) Gateway UI. This provides a visual way to register and test agents without writing code.

1. Navigate to Agents​

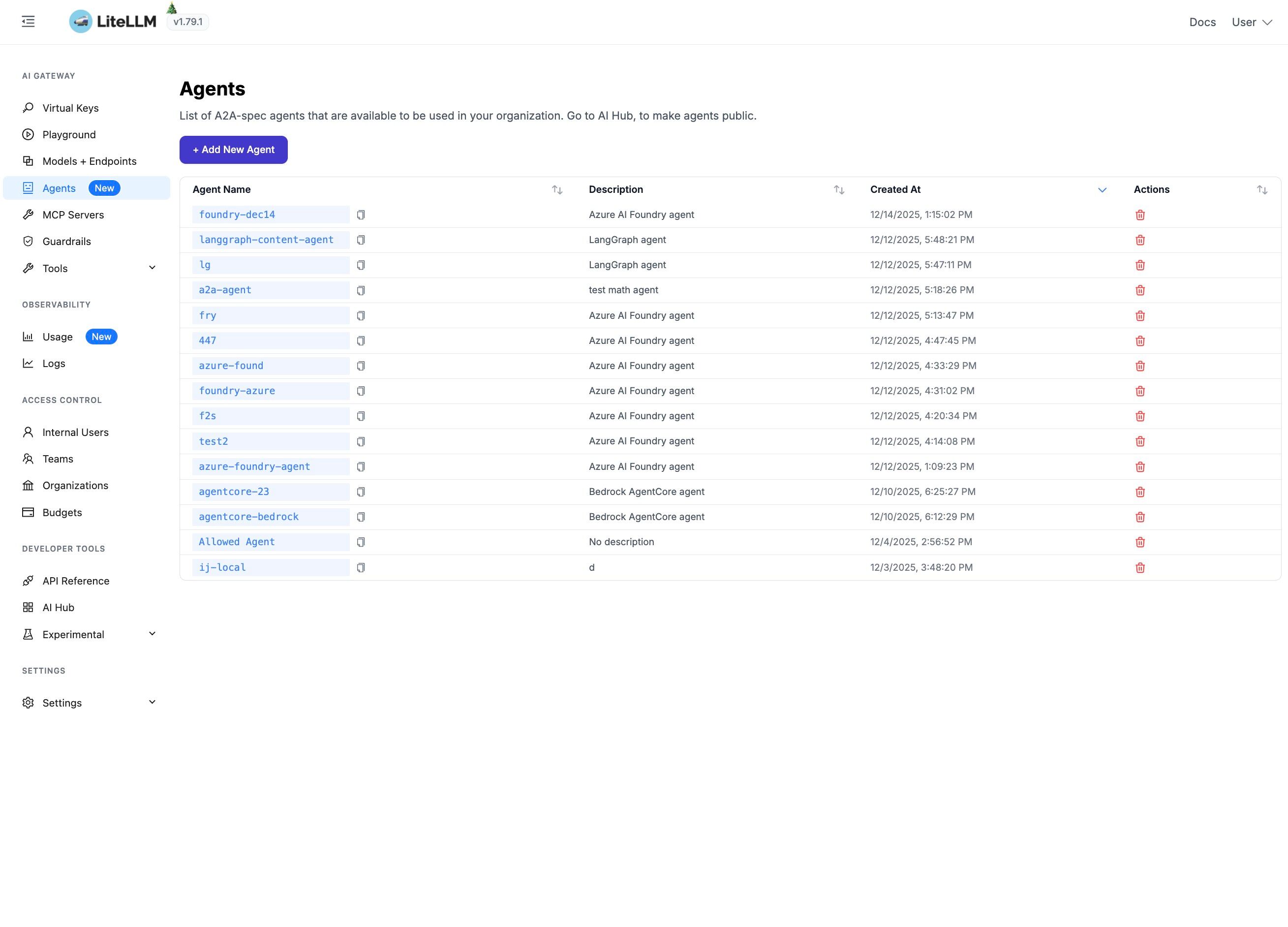

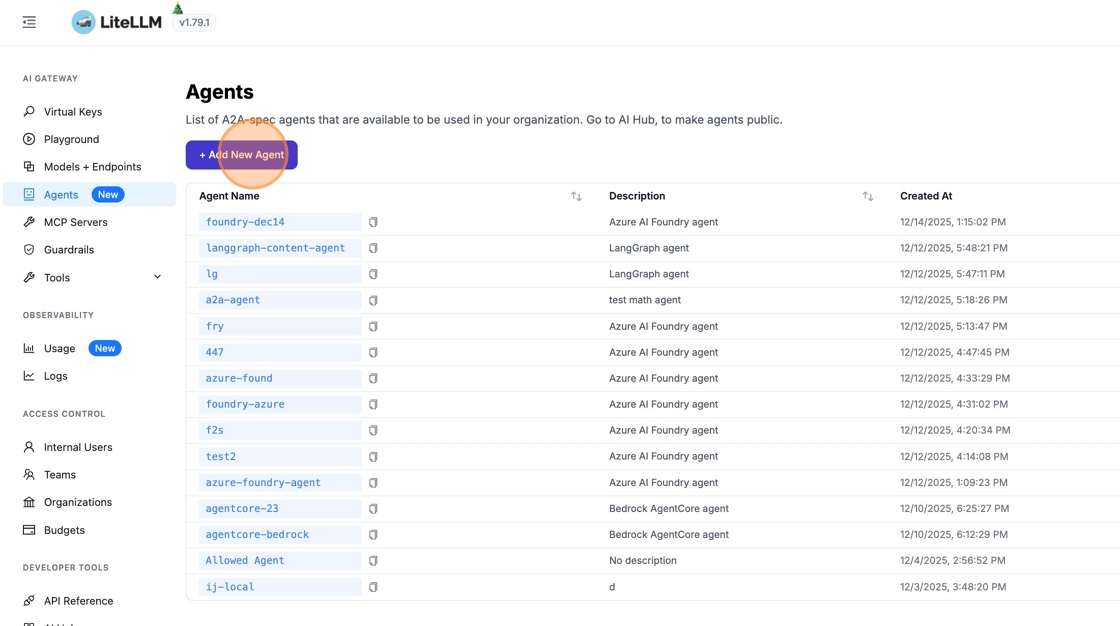

From the sidebar, click "Agents" to open the agent management page, then click "+ Add New Agent".

Add New Agent

2. Select Azure AI Foundry Agent Type​

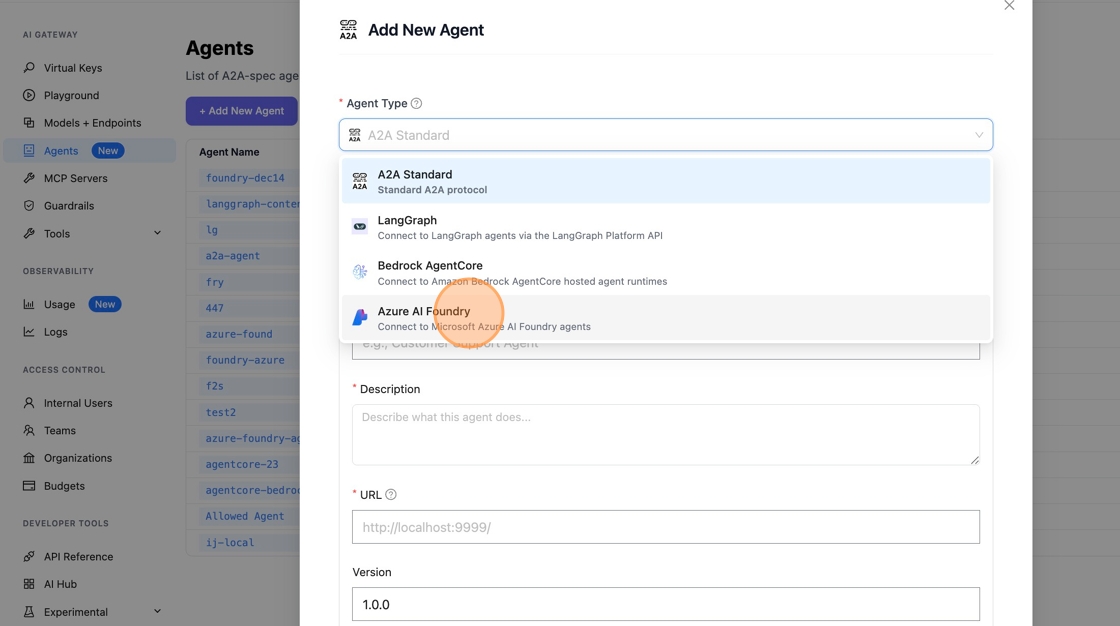

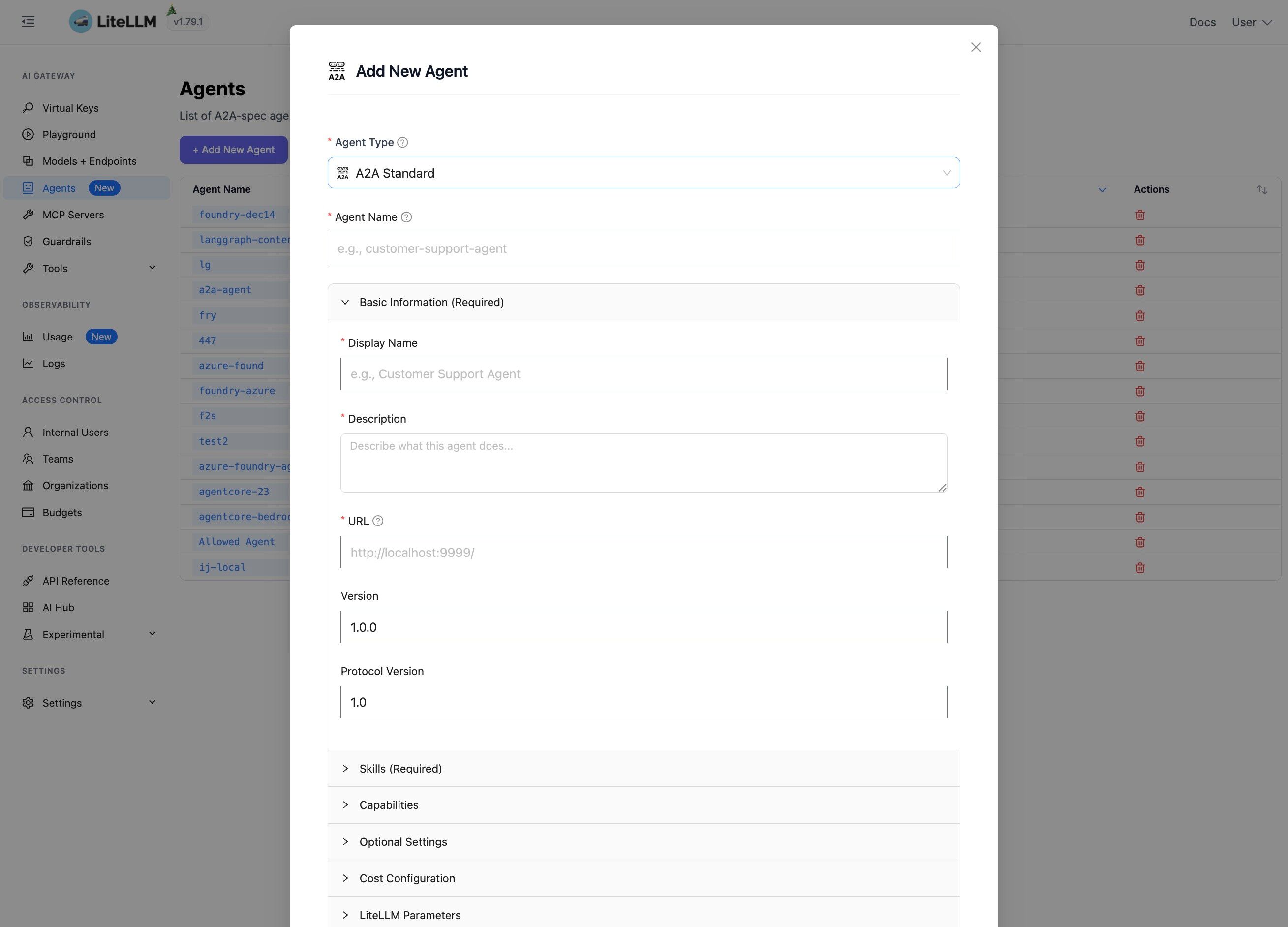

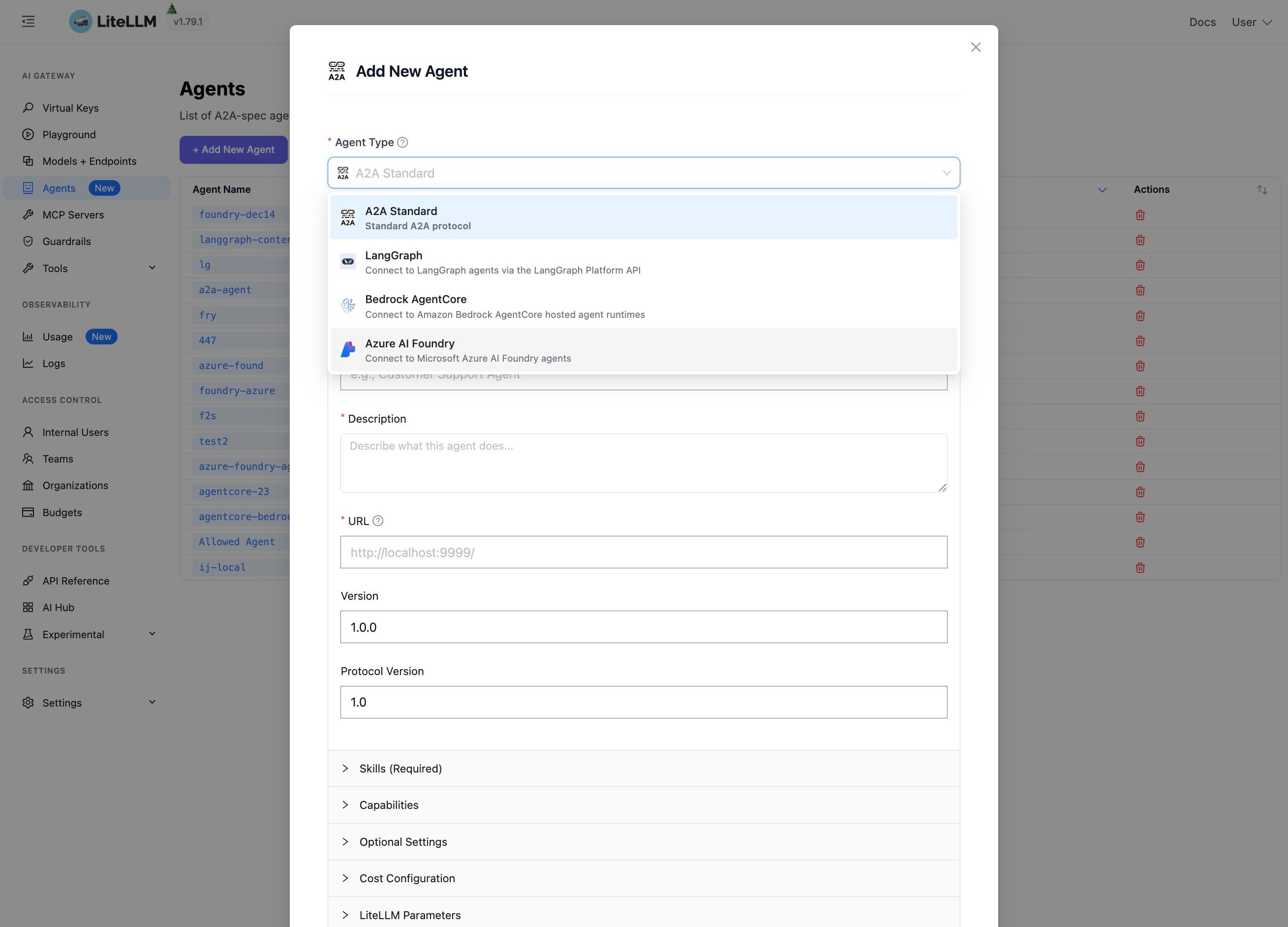

Click "A2A Standard" to see available agent types, then select "Azure AI Foundry".

Select A2A Standard

Select Azure AI Foundry

3. Configure the Agent​

Fill in the following fields:

Agent Name​

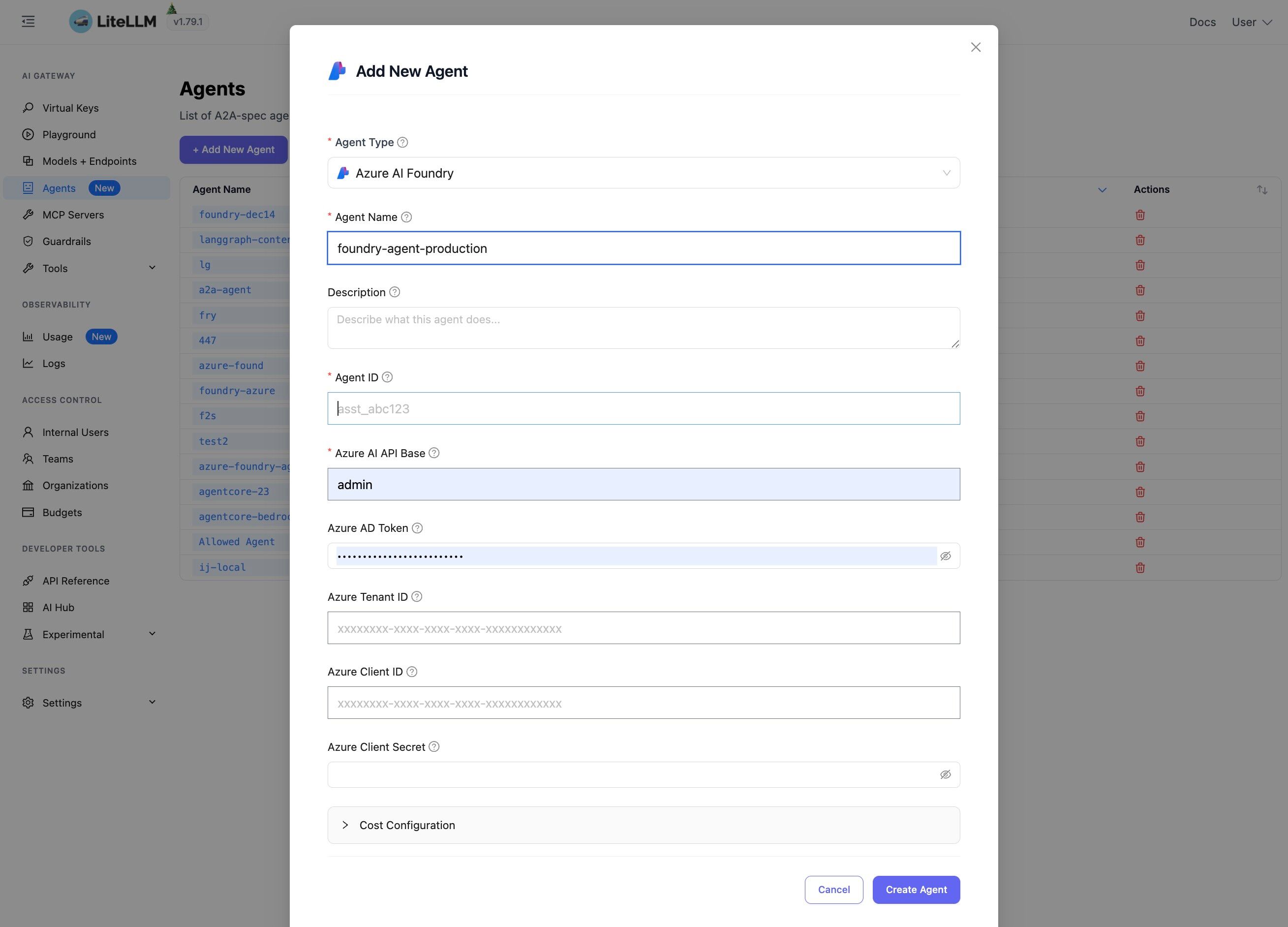

Enter a friendly agent name - callers will see this name as the agent available.

Enter Agent Name

Agent ID​

Get the Agent ID from your Azure AI Foundry portal:

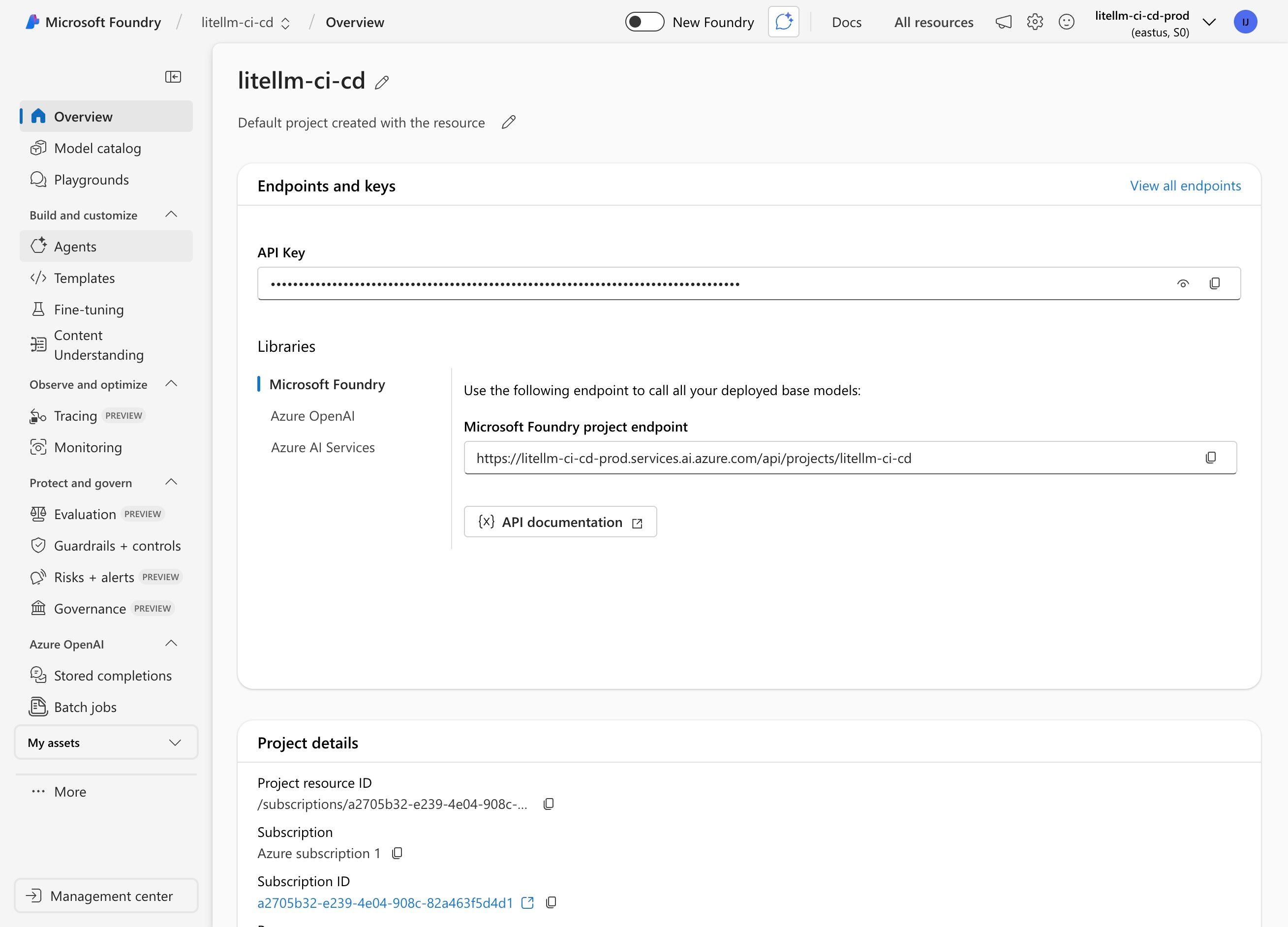

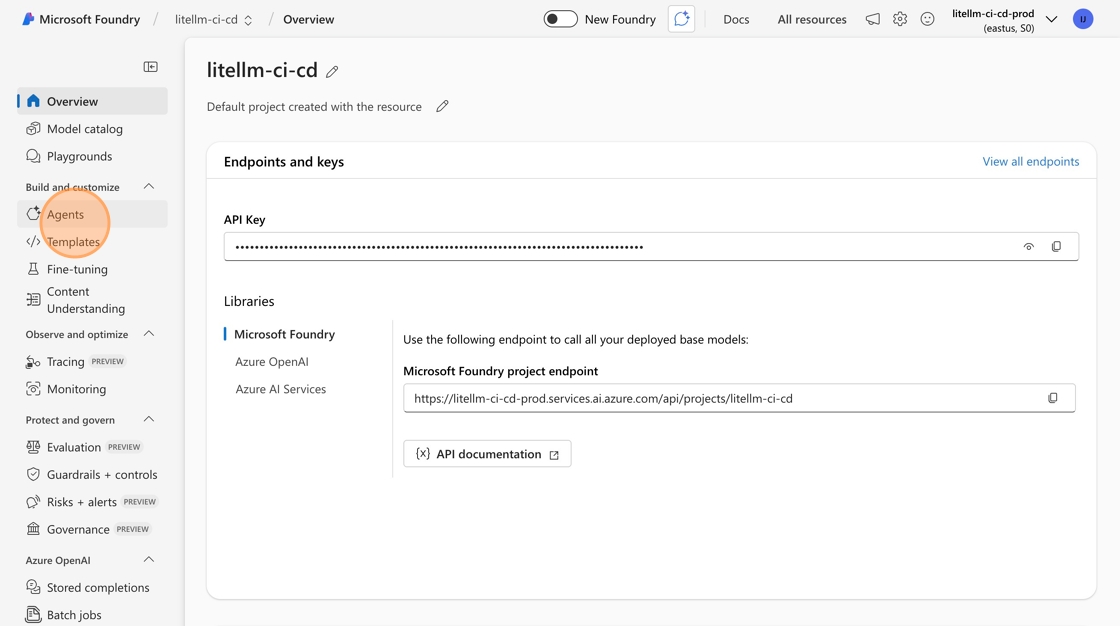

  1. Go to https://ai.azure.com/ and click "Agents"

Azure Agents

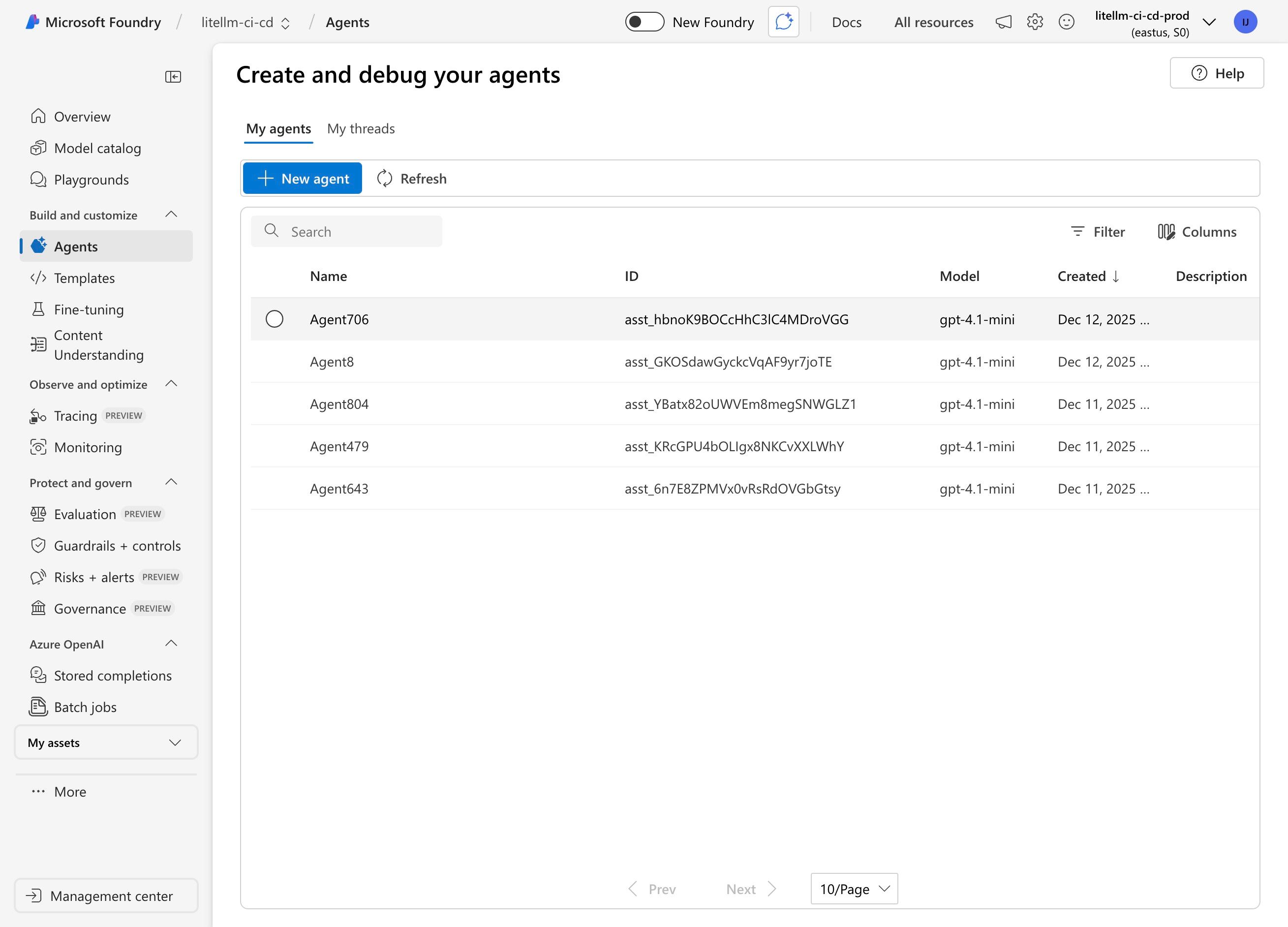

  1. Copy the "ID" of the agent you want to add (e.g., asst_hbnoK9BOCcHhC3lC4MDroVGG)

Copy Agent ID

  1. Paste the Agent ID in LiteLLM - this tells LiteLLM which agent to invoke on Azure Foundry

Paste Agent ID

Azure AI API Base​

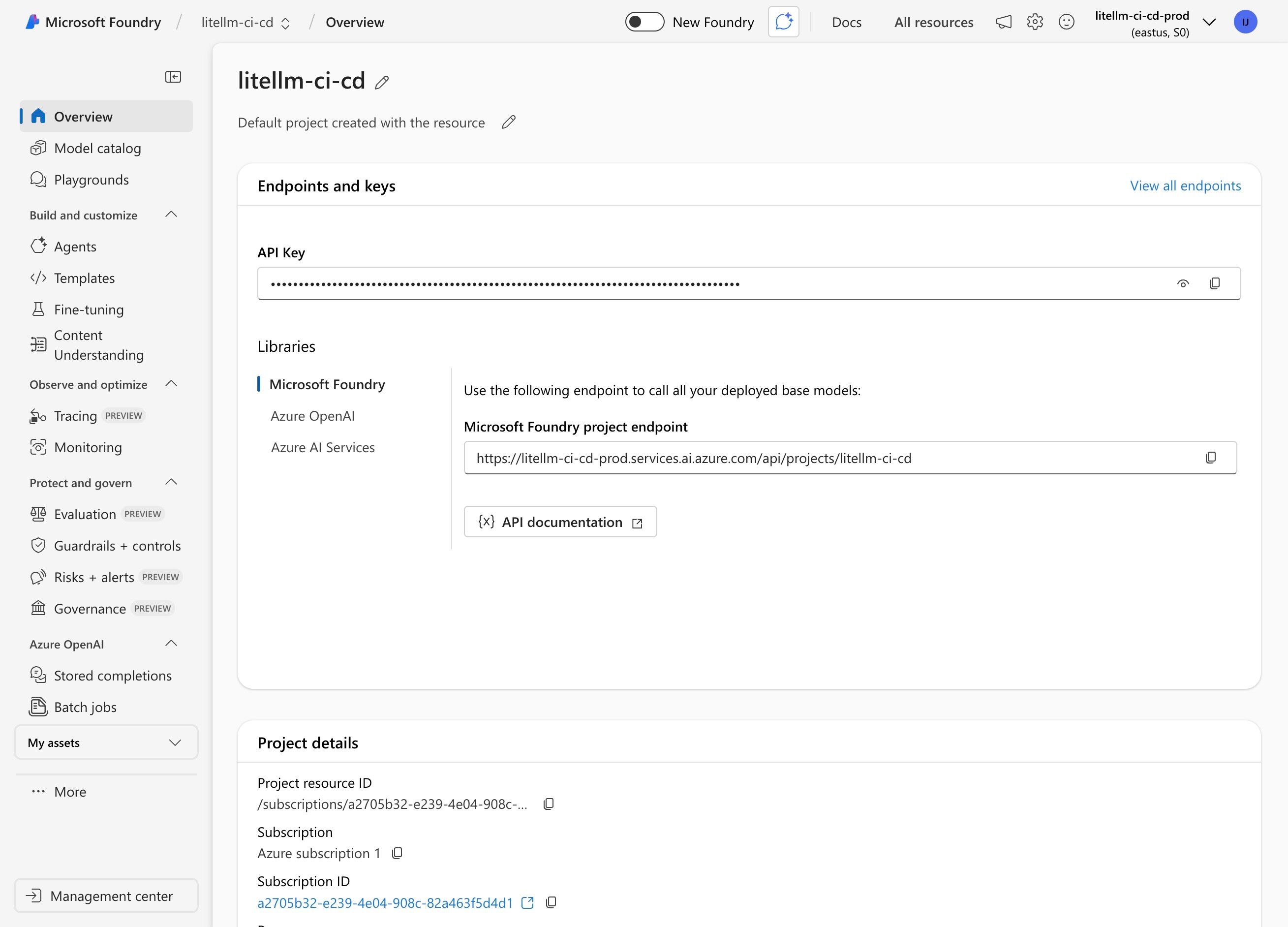

Get your API base URL from Azure AI Foundry:

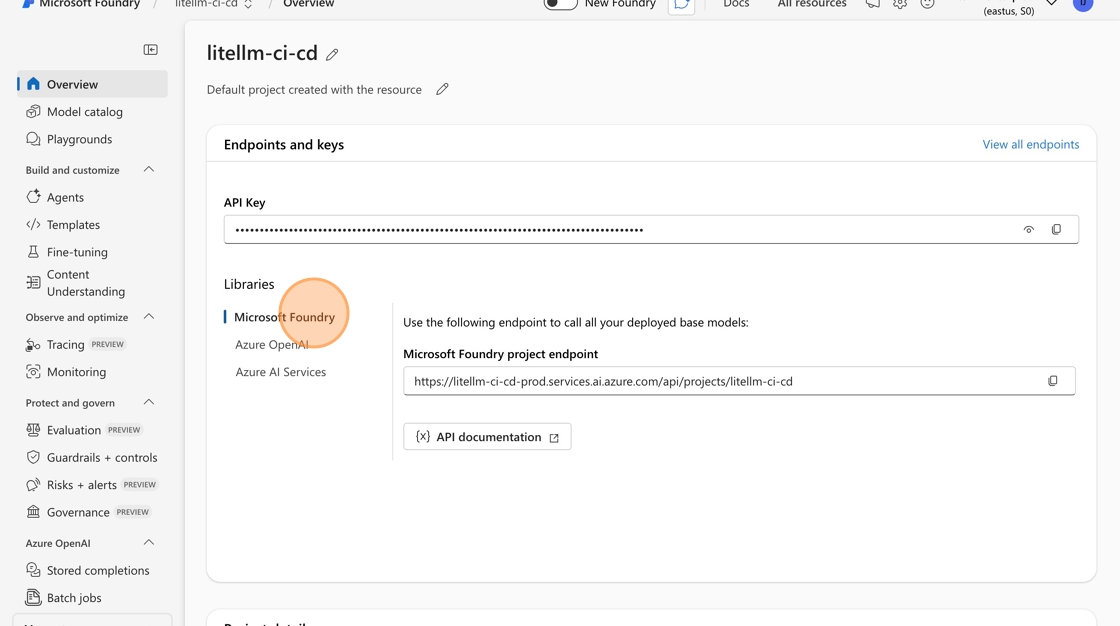

  1. Go to https://ai.azure.com/ and click "Overview"
  2. Under libraries, select Microsoft Foundry
  3. Get your endpoint - it should look like https://<domain>.services.ai.azure.com/api/projects/<project-name>

Get API Base

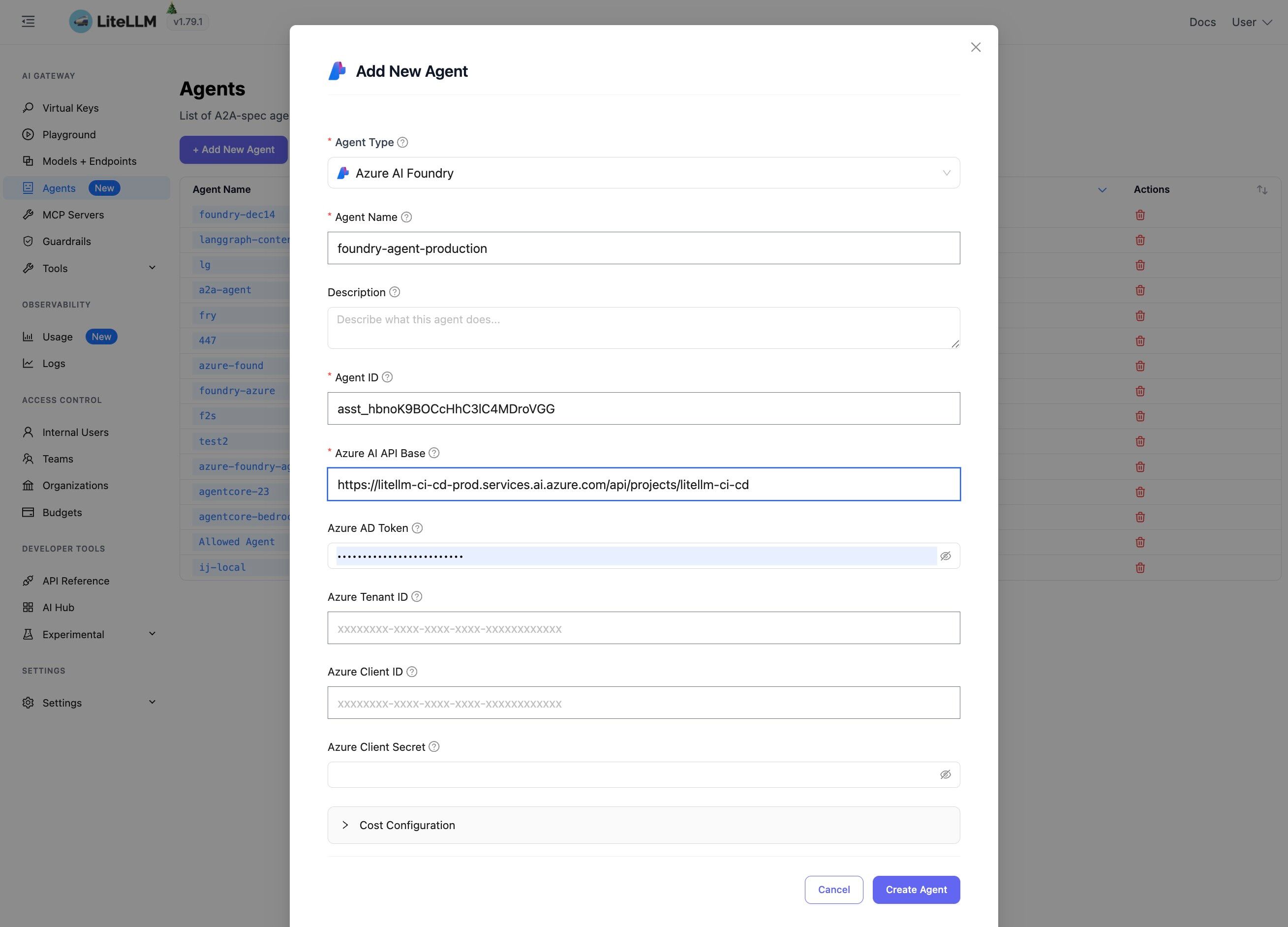

  1. Paste the URL in LiteLLM

Paste API Base

Authentication​

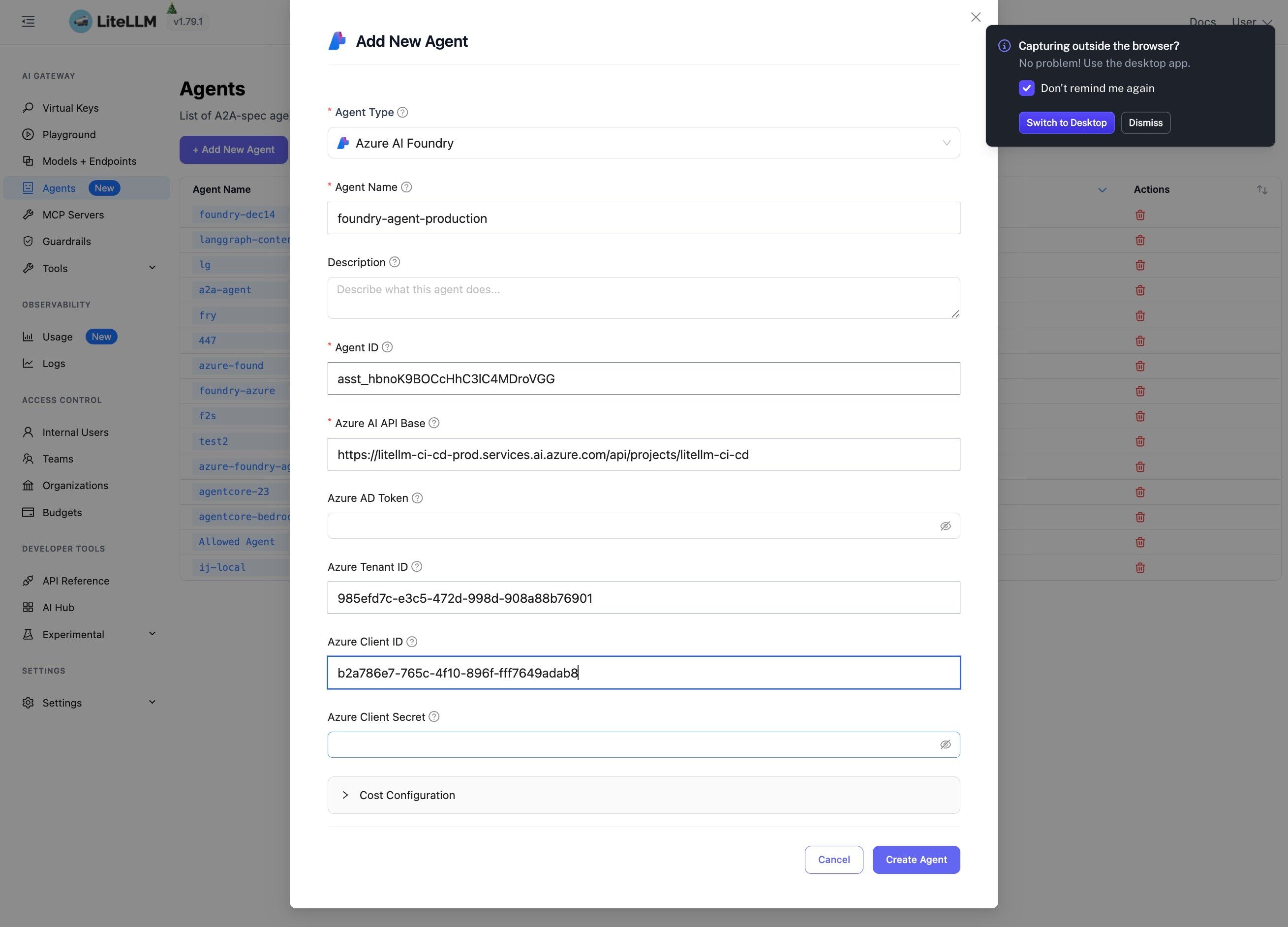

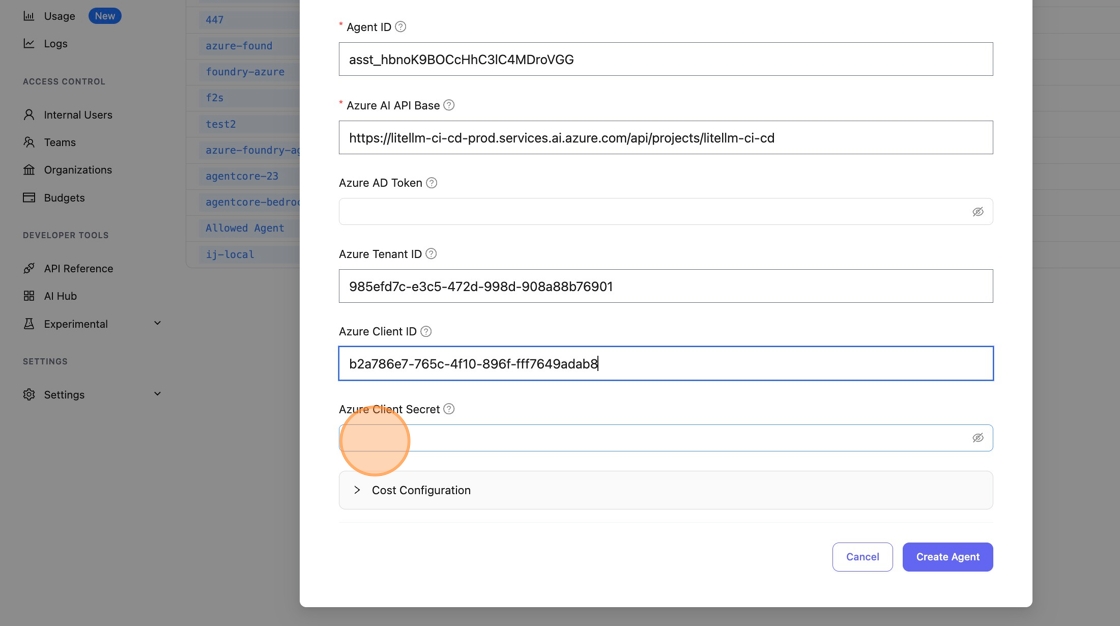

Add your Azure AD credentials for authentication:

  • Azure Tenant ID
  • Azure Client ID
  • Azure Client Secret

Add Auth

Click "Create Agent" to save.

Create Agent

4. Test in Playground​

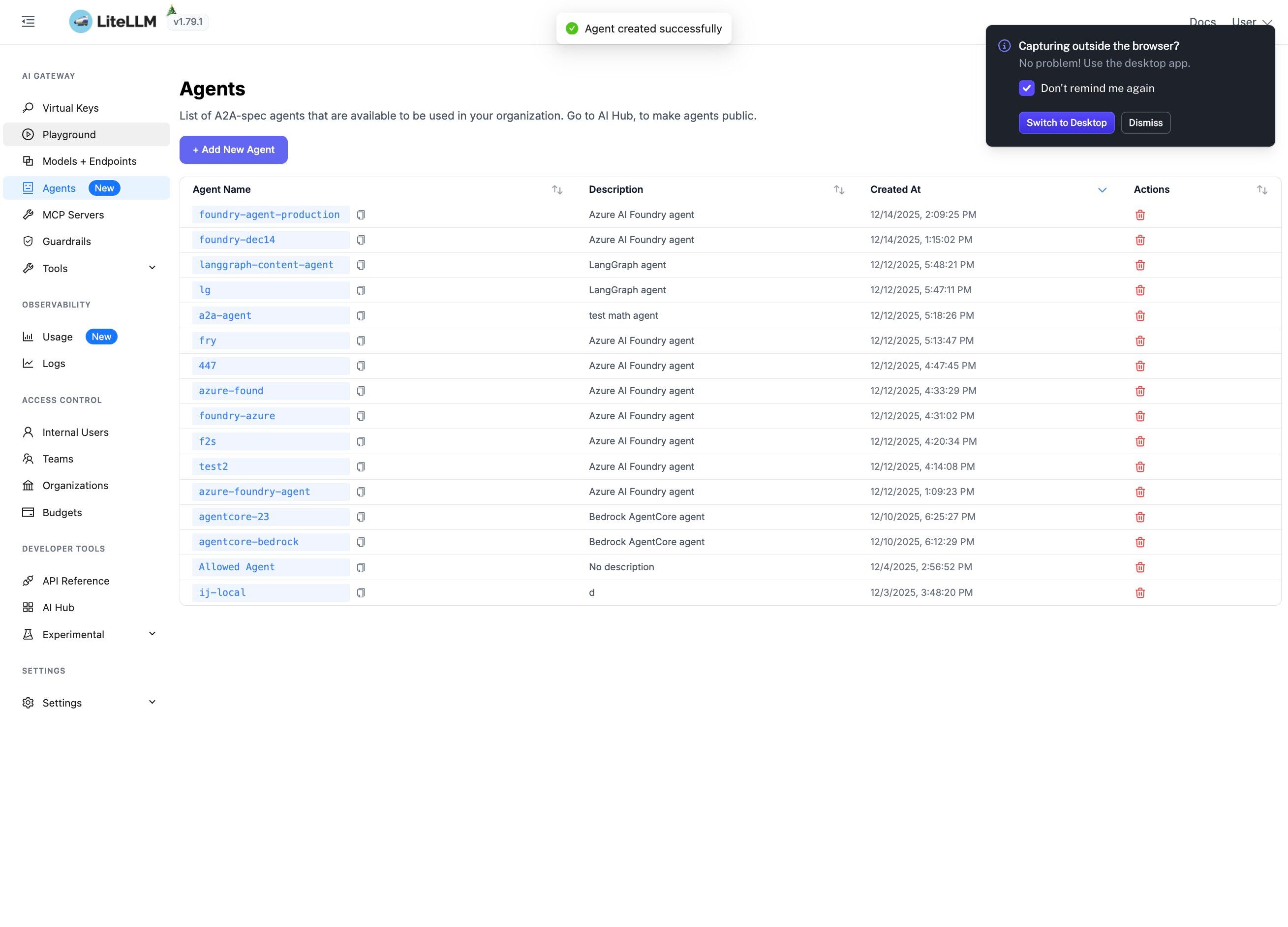

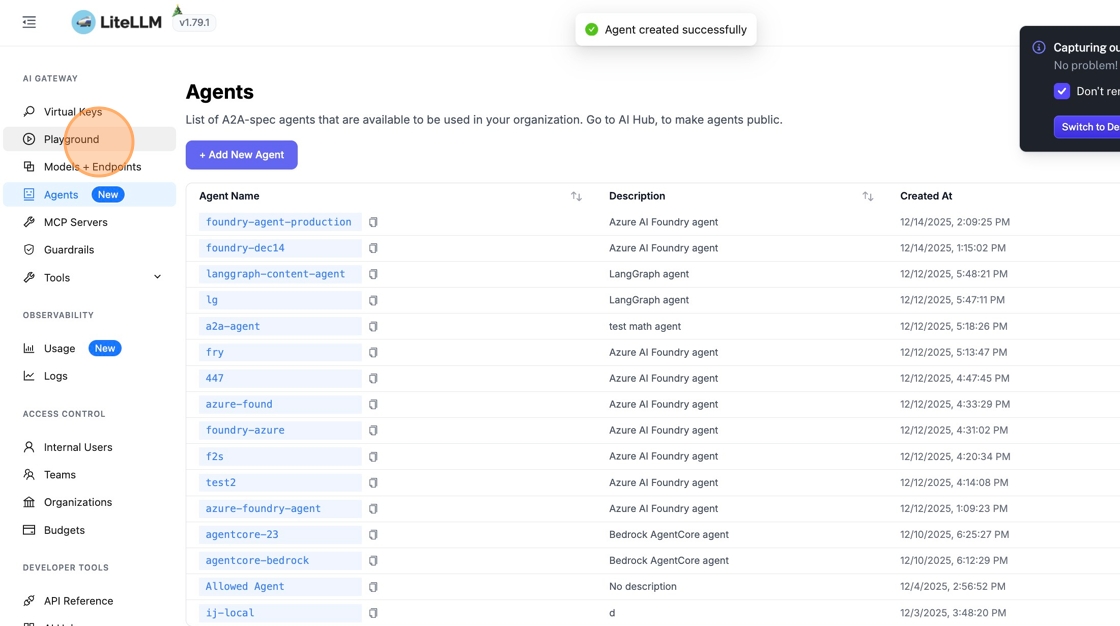

Go to "Playground" in the sidebar to test your agent.

Go to Playground

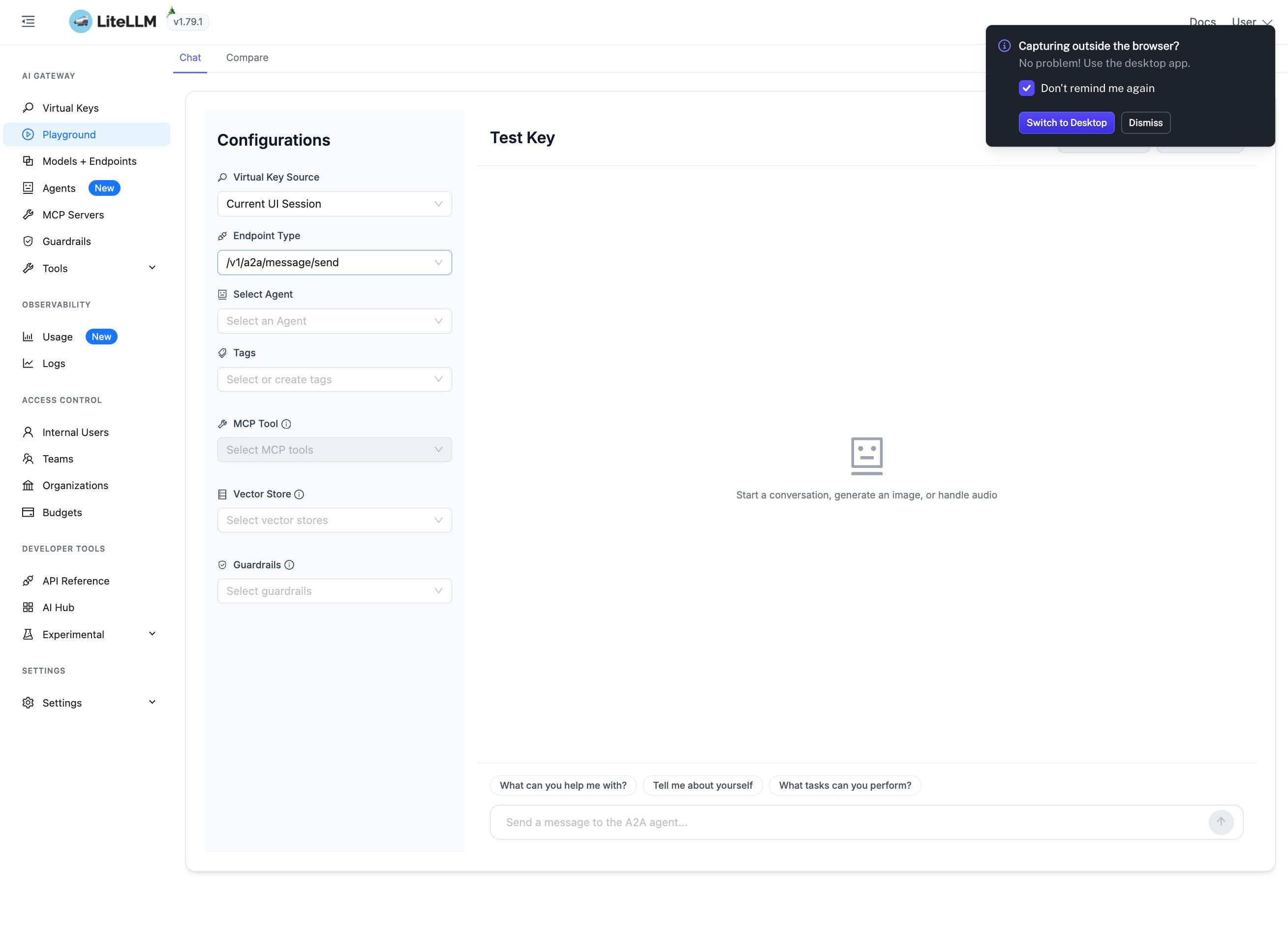

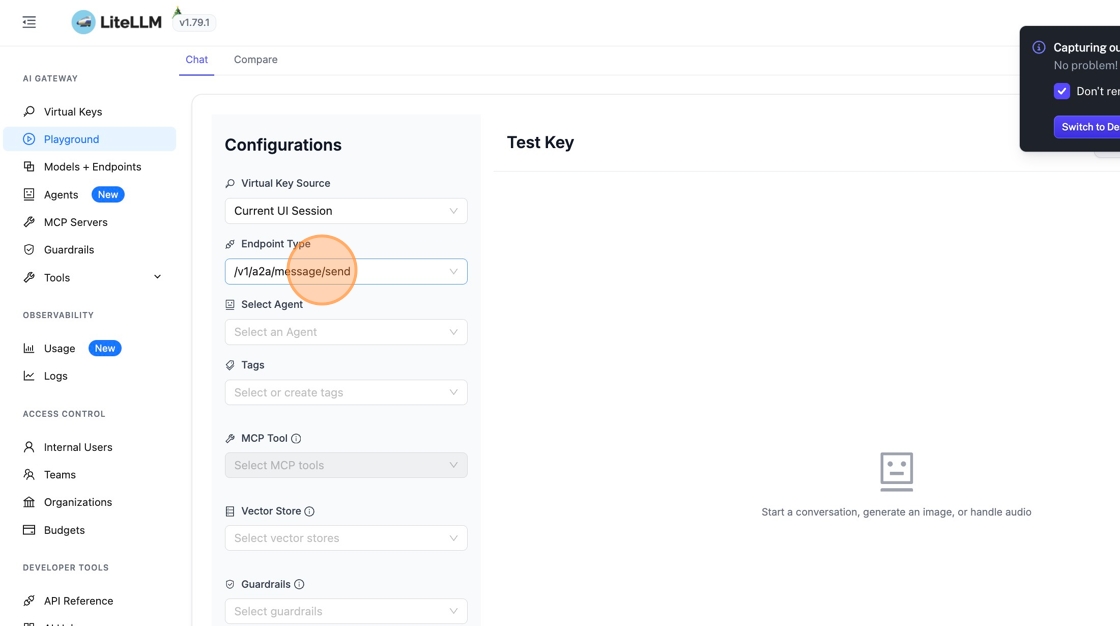

Change the endpoint type to /v1/a2a/message/send.

Select A2A Endpoint

5. Select Your Agent and Send a Message​

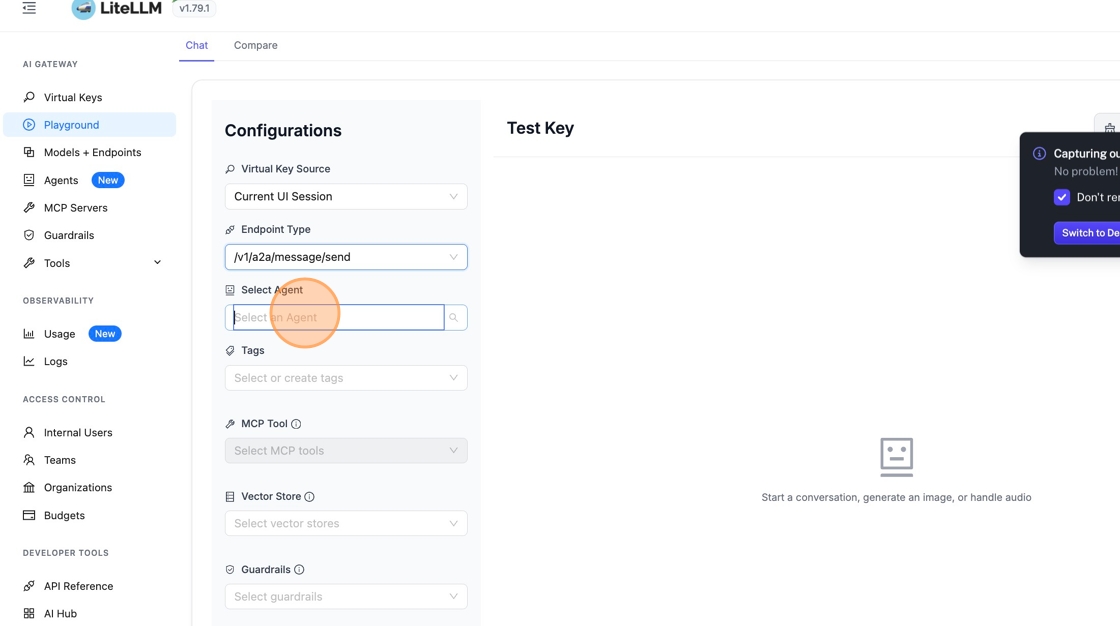

Pick your Azure AI Foundry agent from the dropdown and send a test message.

Select Agent

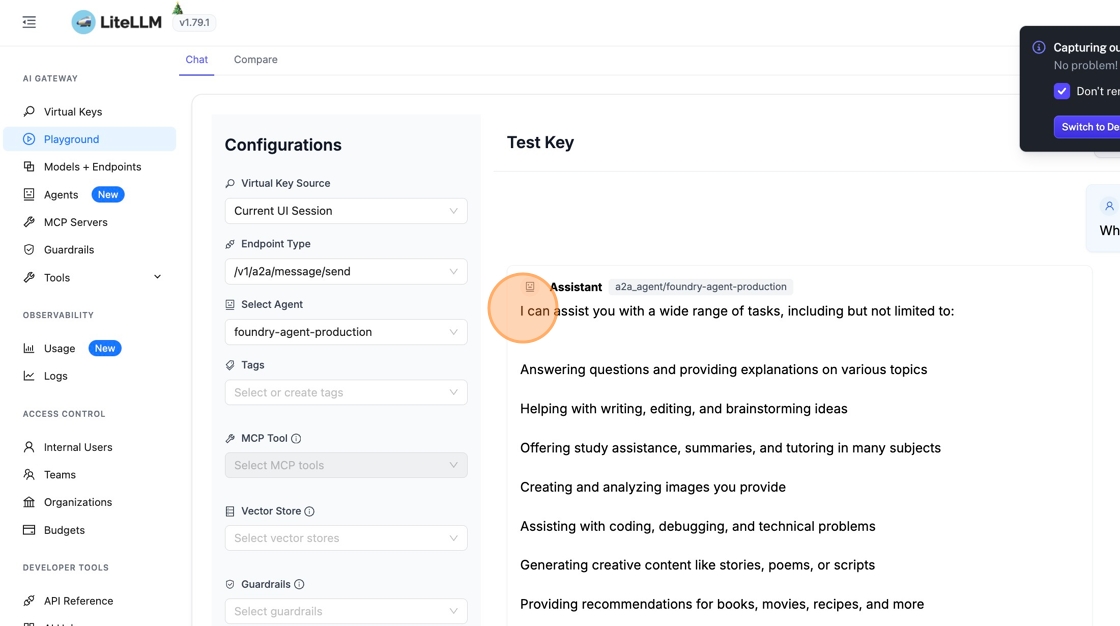

The agent responds with its capabilities. You can now interact with your Azure AI Foundry agent through the A2A protocol.

Agent Response
